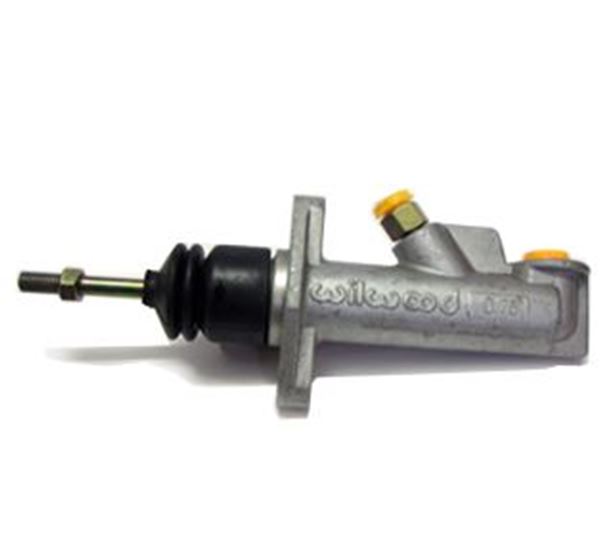

Wilwood Girling type Master Cylinder

Previous productTilton 3 Chamber Brake And ...
Next productTilton 75 Series Master Cyl...
Wilwood Compact Remote Reservoir Master Cylinders are the perfect solution for club sport racers, small open wheel cars or any other custon application where space is limited for master cylinders and fluid reservoirs.
AU$125.00
Be the first to review this product
Manufacturer: Wilwood
*

Wilwood Compact Remote Reservoir Master Cylinders are the perfect solution for club sport racers, small open wheel cars or any other custon application where space is limited for master cylinders and fluid reservoirs.



These master cylinders are constructed from aluminium for use with remote or detachavle fluid reservoirs. The Compact Remote Reservoir Master Cylinders are available in various bore sizes and have a full stroke of 1.4".



This stroke accomodates short pedal ratios, small brake calipers and hydraulic clutch actuation for limited space applications.



Vertical flange with 2.25" mounting hole centres.



Master Cylinder Specifications:

Bore Size Area (in): Stroke: Volumne (cu in): Type: Outlets: Finish: Reservoir Type Overall Length (in): Flange to End Length (in): Inlet Size(in): Outlet Size 1 (in): Outlet Fit 1 (in):
.625 (5/8") 0.31 1.4" 0.43 Single Outlet 1 Bare Remote 7.97" 4.10" 7/16-20 3/8-24 3/8-24 If Female

.700

(7/10")

 0.38 1.4" 0.53 Single Outlet 1 Bare Remote 7.97" 4.10" 7/16-20 3/8-24 3/8-24 IF Female

.750

(3/4")

 0.44 1.4" 0.61 Single Outlet 1 Bare Remote 7.97" 4.10" 7/16-20 3/8-24 3/8-24 IF Female

Wilwood Compact Remote Reservoir Master Cylinders are the perfect solution for club sport racers, small open wheel cars or any other custon application where space is limited for master cylinders and fluid reservoirs.



These master cylinders are constructed from aluminium for use with remote or detachavle fluid reservoirs. The Compact Remote Reservoir Master Cylinders are available in various bore sizes and have a full stroke of 1.4".



This stroke accomodates short pedal ratios, small brake calipers and hydraulic clutch actuation for limited space applications.



Vertical flange with 2.25" mounting hole centres.



Master Cylinder Specifications:

Bore Size Area (in): Stroke: Volumne (cu in): Type: Outlets: Finish: Reservoir Type Overall Length (in): Flange to End Length (in): Inlet Size(in): Outlet Size 1 (in): Outlet Fit 1 (in):
.625 (5/8") 0.31 1.4" 0.43 Single Outlet 1 Bare Remote 7.97" 4.10" 7/16-20 3/8-24 3/8-24 If Female

.700

(7/10")

 0.38 1.4" 0.53 Single Outlet 1 Bare Remote 7.97" 4.10" 7/16-20 3/8-24 3/8-24 IF Female

.750

(3/4")

 0.44 1.4" 0.61 Single Outlet 1 Bare Remote 7.97" 4.10" 7/16-20 3/8-24 3/8-24 IF Female
