Compact Heater Box - 1 Outlet

The Compact EVO1 Heater is very powerful, compact and is ideal for motorsport use.

It is suitable for many motorsport applications including competition cars, bespoke kit cars, off road vehicles and much more. The heater is available with 1x 100mm diameter outlet. The heater uses a centrifugal fan with high, medium and low speed settings.

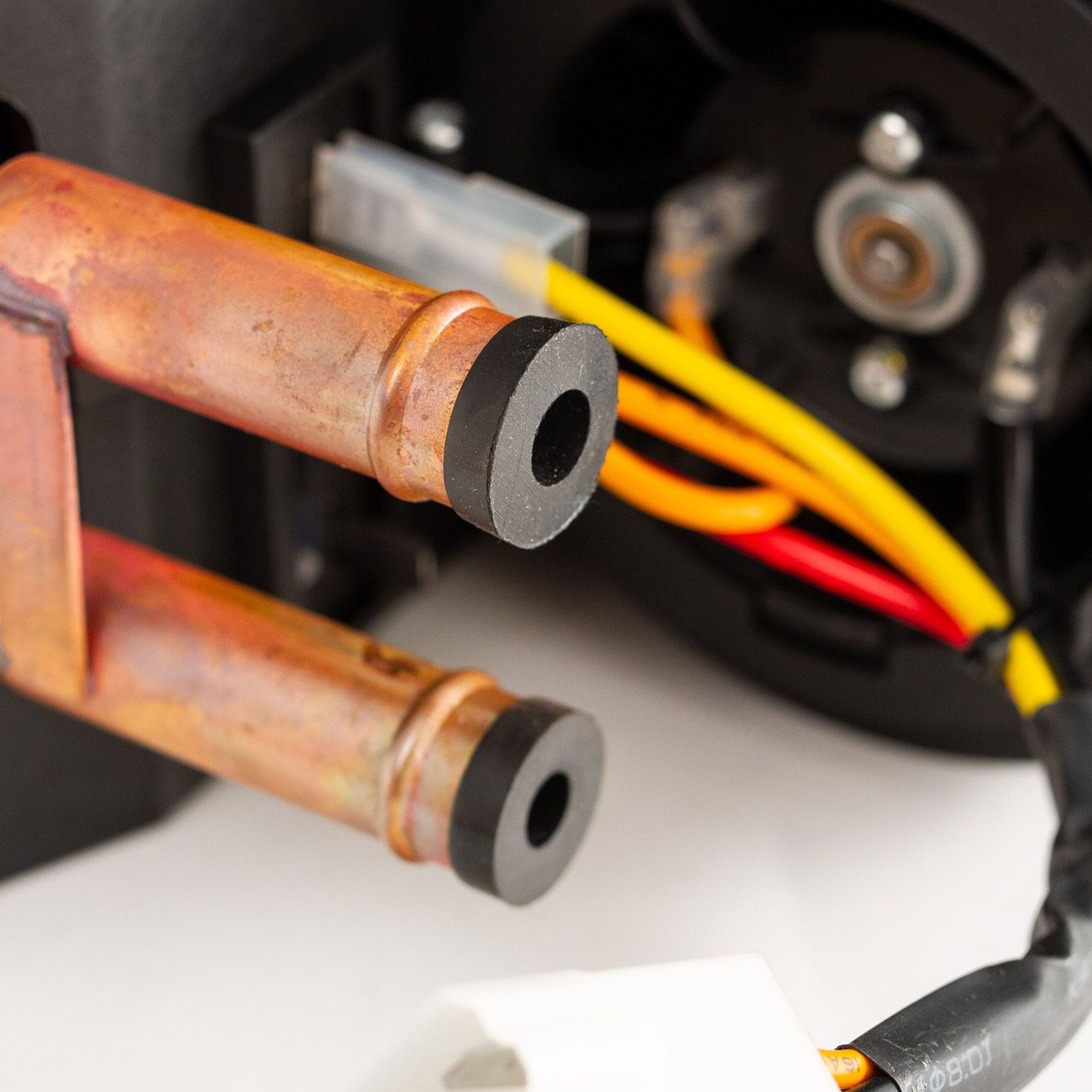

The heater is connected to a vehicles heating system via two 16mm hose connectors on the rear of the unit.

• Uses a powerful centrifugal blower with a built in resistor pack. The heater produces a heat output of 4.3kw and an airflow of 135cfm.

Specification:

Heat output - 4.3kw

airflow - 135cfm

weight - 2.2kg

hose size - 16mm

noise - 63 dB

Voltage - 12V, current continuous - 5.8a (max fan speed)

Power consumption - 70w

Heater core design - copper tube with aluminium fin
