BG Racing Wireless Race Scales

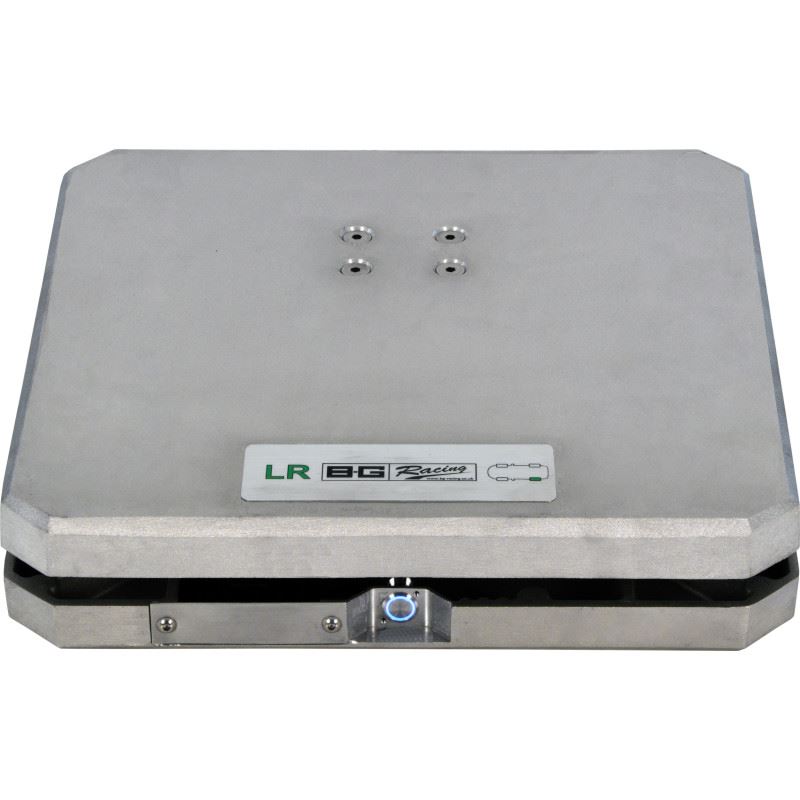

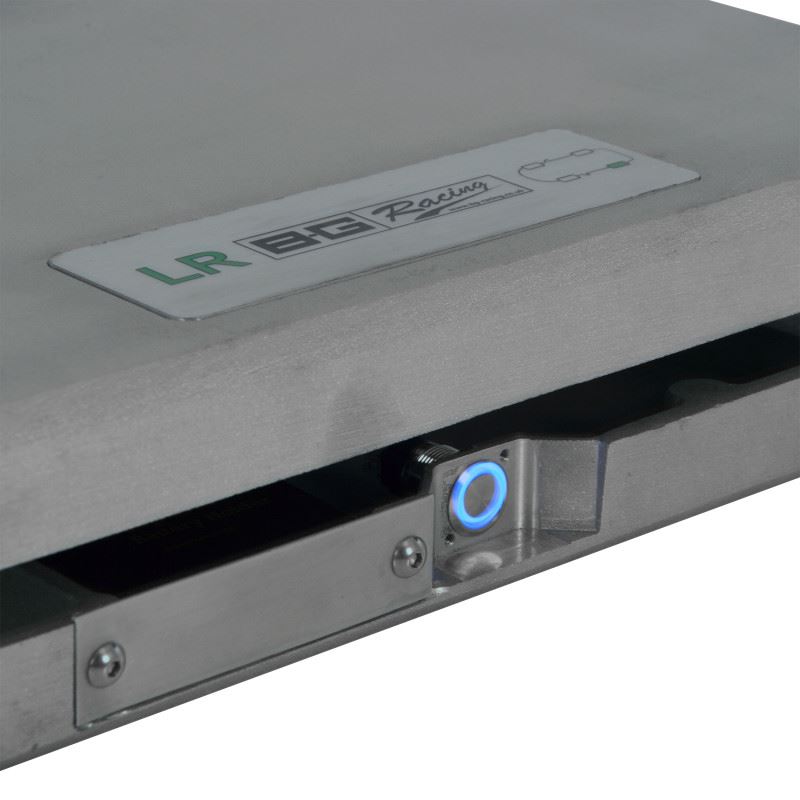

The Wireless Race Scale pads have a ribbed aluminium construction for maximum strength and minimal
deflection, essential for accurate, repeatable results.

The up-to-date combination of a wireless Android tablet and Bluetooth 5.0 wireless technology means the Scales are simple to use and very responsive. Unlike RF or Wi-Fi systems, the Bluetooth Scale Pads pair directly to the tablet, avoiding any interference or disconnecting / reconnecting after every use.

The easy-to-use wireless 10” Android tablet displays the vehicle’s four corner weights, the axle weights, the cross weights, rear bite, and percentages all at once, with accuracy to 0.5kg. The data on display can be changed to suit user preference through a range of options. Not only does the Wireless Scale System avoid the need for trailing cables around the workshop floor, but it also doubles as a Set Up database, where the user can save, load, and export the Scale data onto a comprehensive set up sheet if desired, including ride heights, damper settings, alignment settings and more. These set up sheets can be recalled at any time for exporting to a CSV or PDF file, or for comparing with the live data.

The Wireless Scale System can also determine the vehicle centre of gravity, with some simple user inputs. This added function is ideal for determining where to place ballast, or where to shed excess mass from your car.

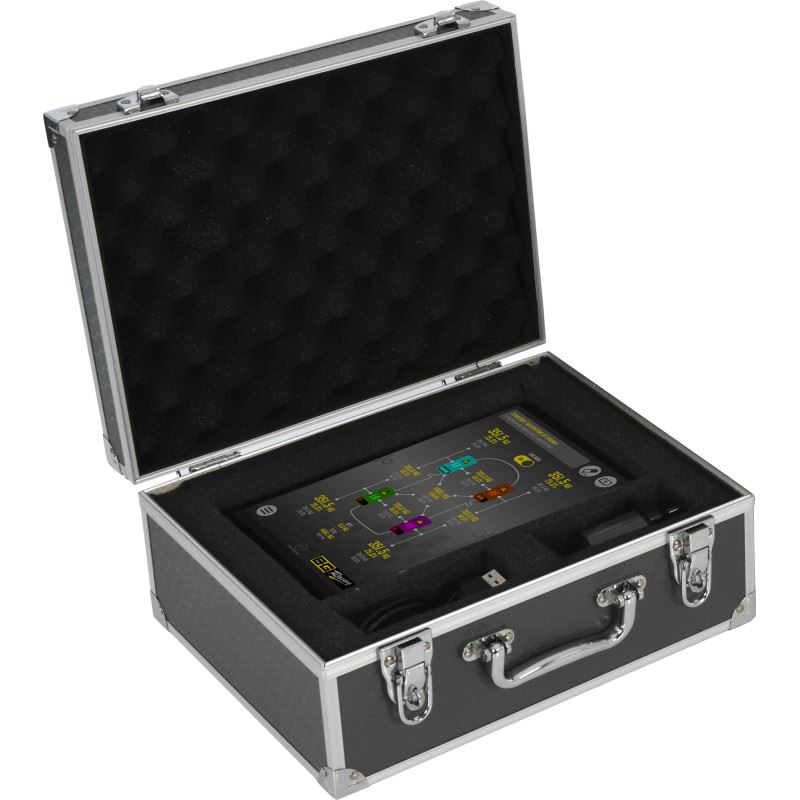

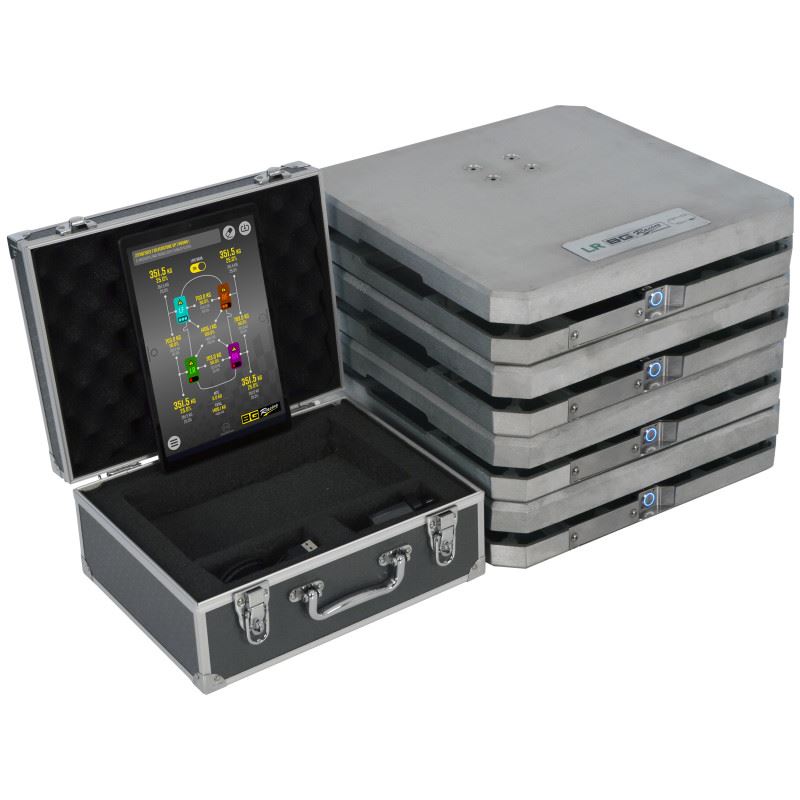

The Wireless Race Scale system is supplied with a case and charger for the 10” Android tablet, and a full set of AA batteries for the set of 4 Scale Pads, which are easily replaceable thanks to the removable compartment.

An optional Flight Case (BGR327) is also available to safely store and transport your scale system and tablet. Produced from birch ply and aluminium, the Flight Case is fitted with two fixed and two fully rotating locking and braking castor wheels for ease of transport, and two recessed handles for lifting.

A protective Tablet Case (BGR335TC) is also offered to keep your valuable Tablet safe from accidental damage.
