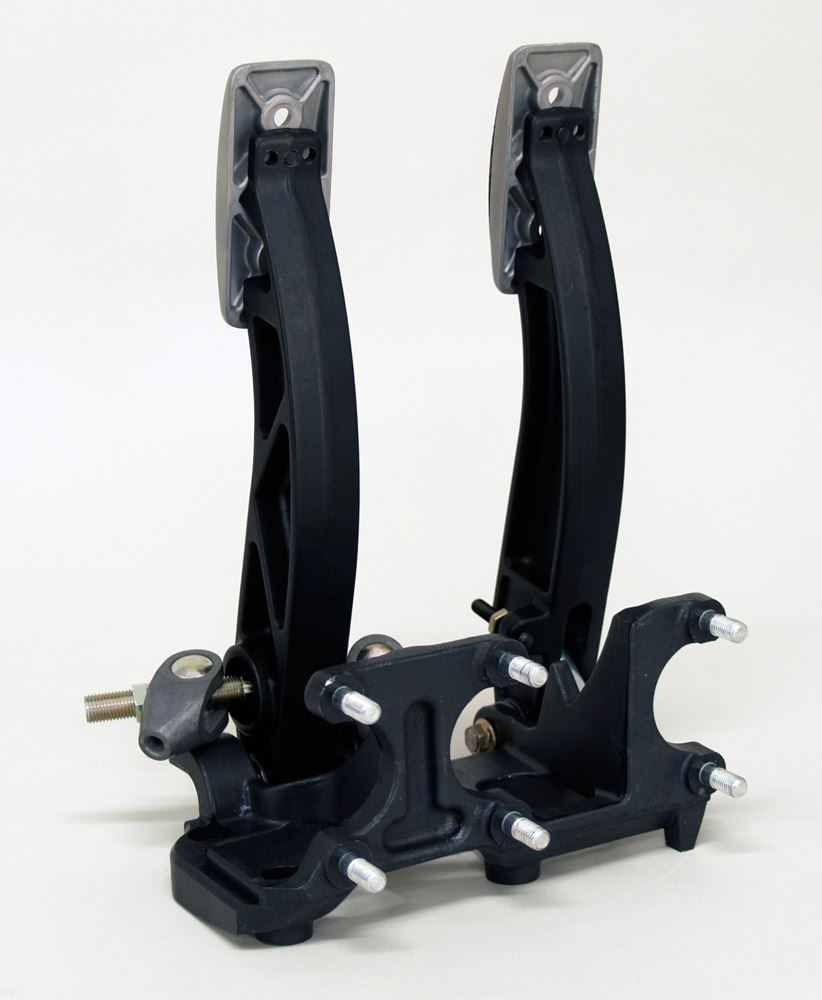

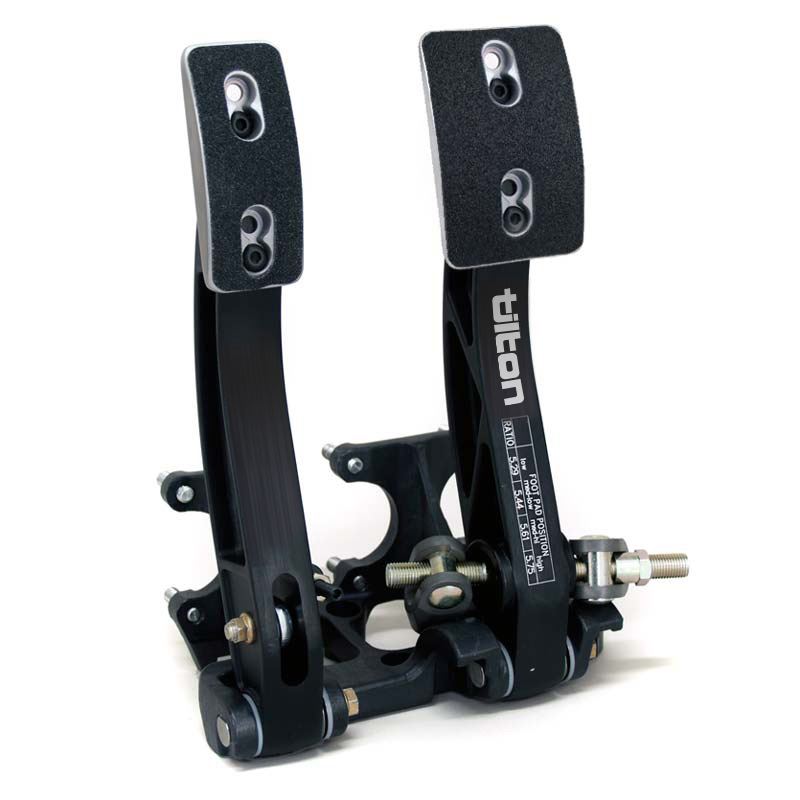

Tilton 600-Series 2-Pedal Floor Mount Assembly

Tilton 600-Series pedal assemblies are the benchmark for pedal assemblies of their type, offering great performance and value.  600-Series pedal assemblies are the categorized by the use of a traditional spherical bearing type balance bar and flange mounted master cylinders.

600-Series 2 Pedal Floor Mount - 72-604

Features:

• Forged aluminum pedals with adjustable (vertical & horizontal) foot pads and anti-slip surfaces.
• Adjustable pedal ratio (5.29:1, 5.44:1, 5.61:1, 5.75:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
• Large diameter 7/16”-20 balance bar provides maximum rigidity.  PTFE coated aluminum clevises for increased durability and reduced friction.
• Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
• Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability.
• Adjustable clutch pedal stop prevents clutch over-stroking.
